Topological Data Analysis of Turbulent Plasma Dynamics in Fusion Reactors: Identifying Hidden Structures and Instabilities for Enhanced Confinement

Visualization of multidimensional turbulent plasma structures in a fusion reactor interpreted via topological data analysis, highlighting the transition to simplicial complexes.
Figure 1: This 3D render depicts the complex, turbulent plasma structures within a fusion reactor through the lens of topological data analysis. Plasma diagnostic data is transformed into simplicial complexes, illustrating key topological features such as connected components, loops, and voids. These structures are extracted via the method of persistent homology, which is central to understanding the topological properties of the plasma turbulence. The visualization also includes representations of Betti numbers and persistence diagrams, providing a topological summary of the plasma's intricate behavior. The use of neon highlights against a dark background emphasizes the dynamic and intricate nature of these plasma structures and their analysis.

The pursuit of fusion energy, a clean and virtually limitless power source, hinges on confining plasma at extraordinary temperatures and densities. However, turbulent transport and magnetohydrodynamic (MHD) instabilities within fusion reactors like tokamaks and stellarators pose significant challenges, leading to energy losses and potential damage to device components. Understanding and predicting these complex, multi-scale plasma dynamics is crucial for achieving sustained fusion reactions and enhanced confinement. Traditional analysis methods often struggle to capture the intricate, evolving geometric and relational structures within turbulent plasma. Topological Data Analysis (TDA) is an emerging mathematical framework that offers powerful tools to analyze the 'shape' of complex datasets, identifying hidden structures, connectivity, and persistent features that may serve as precursors to instabilities or indicate changes in confinement regimes.

This article explores the innovative application of TDA to the study of turbulent plasma dynamics in fusion reactors. We delve into how TDA can characterize the complex, high-dimensional data generated from plasma diagnostics and sophisticated simulations. The central thesis is that by quantifying topological features—such as connected components (blobs), loops (voids/eddies), and higher-dimensional voids—TDA can provide novel insights into the organization of turbulent structures, identify signatures of impending instabilities like Edge Localized Modes (ELMs) and disruptions, and ultimately contribute to strategies for enhanced plasma confinement and reactor stability.

The Lens of Topology: Unveiling Plasma Complexity

Turbulent plasma in a fusion device is a high-dimensional, dynamic system characterized by a multitude of interacting waves, particles, and fields. TDA provides a robust methodology to summarize and interpret the underlying geometric and topological structures within such complex data. Instead of focusing solely on local properties or statistical moments, TDA characterizes global features that are invariant under continuous deformations like stretching or bending. Key to TDA is the concept of representing data points as a simplicial complex, a collection of points, line segments, triangles, and their higher-dimensional counterparts. From this, topological invariants such as Betti numbers can be computed: Betti-0 counts the number of connected components (e.g., distinct plasma blobs or filaments), Betti-1 counts the number of one-dimensional holes or loops (e.g., toroidal eddies or voids within a turbulent structure), and Betti-2 counts two-dimensional voids or cavities.

A particularly powerful tool within TDA is persistent homology. This technique tracks topological features as they appear and disappear across a range of scales (e.g., by varying a threshold in density or temperature data). The output, often visualized as a persistence diagram or barcode, highlights features that are 'persistent' (likely significant structures) versus those that are short-lived (potentially noise). For instance, analyzing fluctuations in plasma density or potential from simulations or experimental diagnostics like Beam Emission Spectroscopy (BES) or Gas Puff Imaging (GPI) using persistent homology could reveal the birth, evolution, and decay of coherent structures crucial for transport. This allows for a multi-scale characterization of plasma turbulence that goes beyond traditional spectral methods.

The application of TDA to plasma physics allows for a more fundamental description of the organization within turbulent states. For example, concepts like Time-Lagged Phase Portraits (TLPPs) and other dynamics-based embeddings, as explored in related plasma propulsion contexts (Brooks et al., 2025; Greve & Marsh, 2025), share a common goal with TDA: to represent system dynamics in a space where essential features become more apparent. TDA formalizes this by focusing on quantifiable topological invariants.

Topological data analysis of fusion plasmas illustrating identification and evolution of turbulent structures like blobs, streamers, and zonal flows.

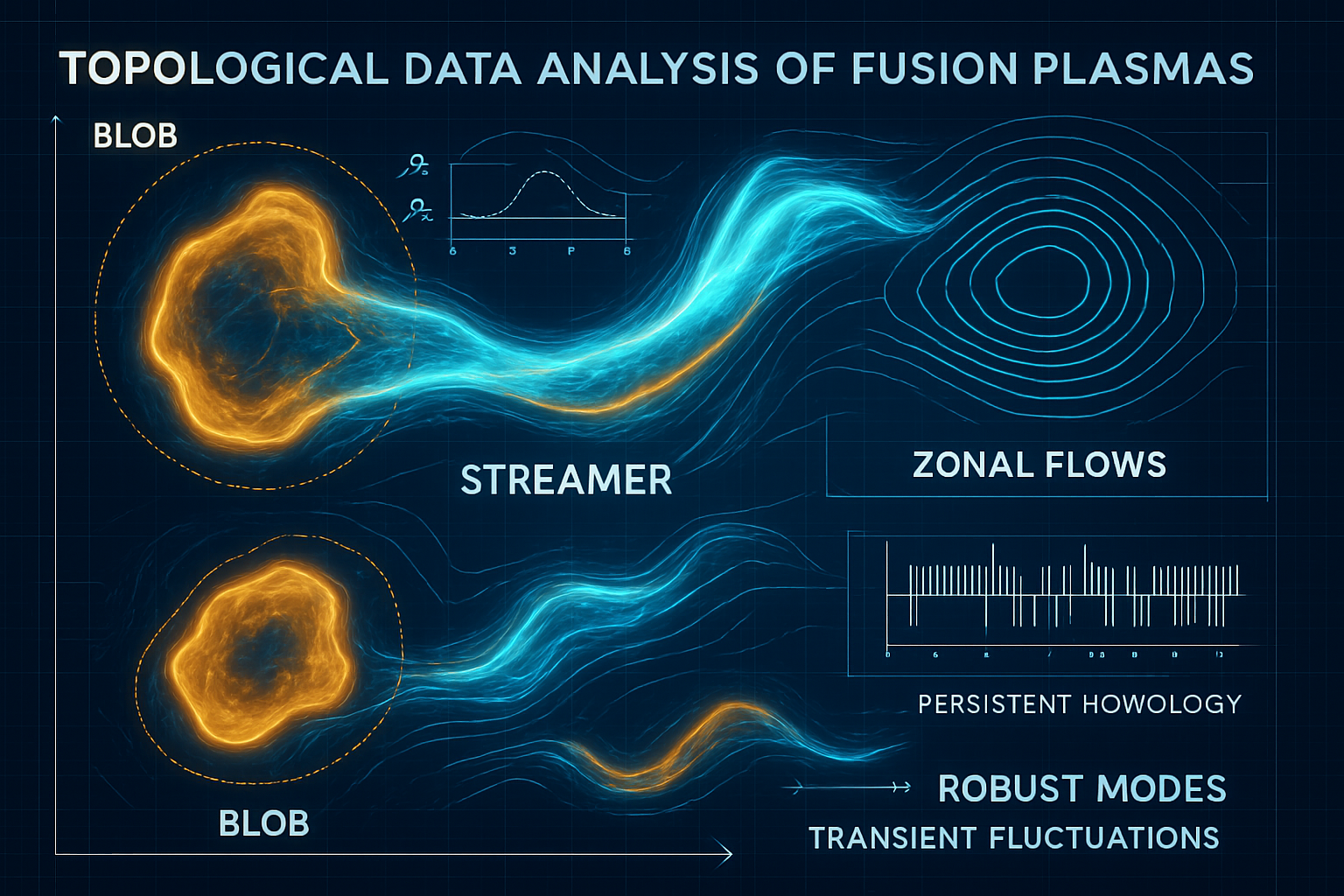

Figure 2: This scientific, futuristic illustration visualizes the application of topological data analysis to the study of fusion plasmas. It features the identification and evolution of coherent turbulent structures such as blobs, streamers, and zonal flows, which are fundamental in understanding plasma dynamics. The visualization highlights the correlation between these structures and Betti numbers, used to quantify their quantity and scale. Persistent homology is showcased, differentiating robust transport-relevant modes from transient fluctuations, providing insights into advanced plasma simulations and experimental diagnostics. The image is set against a high-tech, clean vector grid background, emphasizing the mathematical and technological framework applied in this domain of plasma research.

Topological Signatures of Turbulent Structures in Fusion Plasmas

Turbulent transport in fusion plasmas is largely driven by coherent structures such as streamers, blobs, zonal flows, and intermittent, avalanche-like events. TDA is exceptionally well-suited to identify, characterize, and track these structures within the vast datasets produced by advanced gyrokinetic simulations (e.g., GENE, GKV) or high-resolution experimental diagnostics. For example, Betti-0 curves could track the number and persistence of filamentary blobs propagating in the scrape-off layer, which are critical for understanding plasma-wall interactions. Similarly, Betti-1 numbers might quantify the prevalence and scale of large-scale eddies or zonal flow structures, influencing overall transport levels.

The work by Yoo et al. (2018) on turbulent E×B mixing avalanches in magnetized plasmas, which involves complex electromagnetic topologies and multi-dimensional dynamics, highlights a scenario where TDA could be particularly insightful. By applying TDA to simulation data of such an avalanche, one could characterize the evolution of connected regions of high charge density or the formation and breakup of potential wells, providing a quantitative description of the avalanche's topological complexity. Furthermore, Wang (2020) discussed turbulence-driven 'topological transitions of orbits' in tokamak plasmas leading to spontaneous spin-up. This concept is highly resonant with TDA; it suggests that fundamental changes in plasma behavior can be linked to changes in the topology of underlying fields or particle trajectories. TDA could provide the tools to detect such topological transitions in broader plasma phenomena, potentially linking them to shifts in transport regimes or the onset of larger-scale coherent structures. This ability to quantify structural organization is essential for understanding how turbulence dictates operational boundaries in tokamaks (Manz et al., 2024).

The multi-scale nature of persistent homology can distinguish between transient, small-scale fluctuations and robust, transport-relevant structures. For example, the lifetime of certain Betti numbers in a persistence diagram associated with specific spatial scales of turbulence could serve as a quantitative measure of the coherence and impact of different turbulent modes. This approach could also help in validating reduced transport models by comparing their topological complexity against full physics simulations (Maeyama et al., 2024).

Comparison of plasma edge diagnostics before and during ELMs and disruptions in a fusion device, illustrating topological changes and filamentary growth.
Figure 3: This visualization compares the changing topological signatures of plasma edges in a fusion device before and during instabilities like Edge Localized Modes (ELMs) and disruptions. The illustration highlights changes in the magnetic topology and the growth of filaments, alongside variations in Betti numbers. These elements are crucial for understanding how Topological Data Analysis (TDA) provides early warning indicators of instabilities, potentially enhancing fusion device performance and stability.

Early Warnings: TDA for Instability Prediction and Mitigation

A critical goal in fusion research is the reliable prediction and mitigation of plasma instabilities, which can degrade confinement or even terminate the plasma discharge. TDA offers a novel pathway to identify precursors of such events by detecting subtle but significant changes in the topological structure of plasma parameters.

Edge Localized Modes (ELMs) are quasi-periodic instabilities that expel large amounts of particles and energy from the plasma edge, posing a threat to plasma-facing components in future devices like ITER. The physics of ELMs involves complex interplay of pressure gradients, current densities, and magnetic field structures at the plasma edge (Dominguez-Palacios et al., 2024). TDA applied to high-resolution edge diagnostic data (e.g., ECE, reflectometry, magnetic probes) or MHD simulation outputs could track changes in the number and connectivity of filamentary structures, or the evolution of magnetic island topology preceding an ELM crash. A sudden increase in the Betti-0 number (more filaments) or a change in the persistence of 1D cycles (eddies) in edge turbulence might serve as an early warning signal.

Disruptions are catastrophic events involving a rapid loss of plasma confinement. Identifying reliable disruption precursors is a major focus of machine learning (ML) efforts in fusion (Spangher et al., 2025). TDA can significantly enhance these ML models by providing physically meaningful, low-dimensional topological features. For example, TDA could analyze sequences of magnetic equilibrium reconstructions or signals from Mirnov coils to detect subtle changes in magnetic topology, such as the growth or interaction of tearing modes, which are often precursors to disruptions. The persistence landscape, a functional summary of a persistence diagram, can be directly used as input to ML algorithms, offering a representation that is stable to small perturbations in the input data.

Moreover, TDA may help define the boundaries of stable operational spaces (Manz et al., 2024). Different plasma states (e.g., L-mode, H-mode, I-mode) likely possess distinct topological signatures in their fluctuation characteristics. By learning these signatures, TDA could act as a state classifier and identify transitions towards unstable regions. The evolution of these topological features over time could provide a quantitative measure of how close the plasma is to an instability boundary, offering a new dimension to feedback control systems.

Conceptual illustration showing TDA and ML synergy for fusion plasma instability prediction. Fusion plasma depicted as swirling energy mass, with TDA features like persistence diagrams symbolically integrating into a neural network for instability prediction.

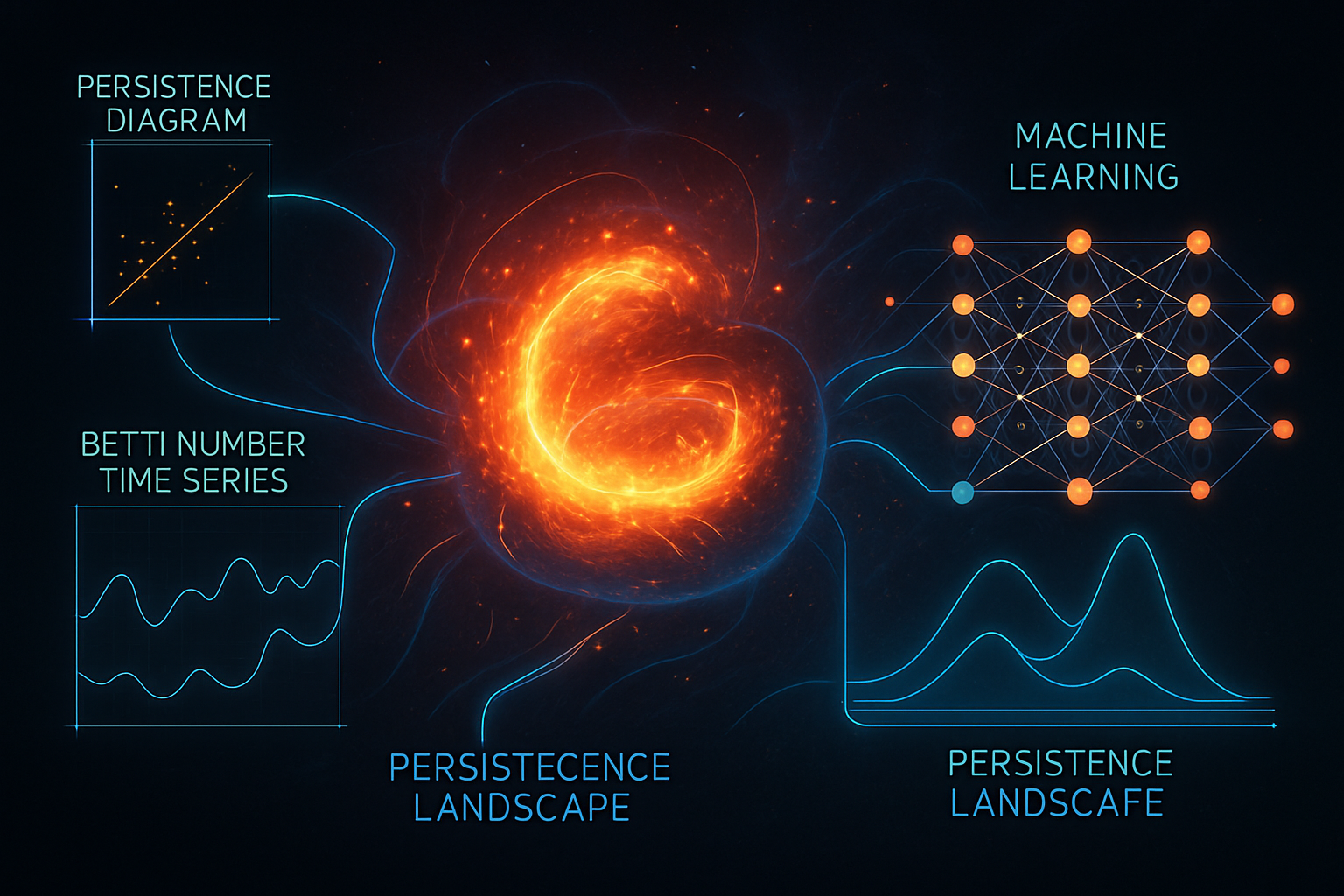

Figure 4: This conceptual illustration visualizes the synergy between Topological Data Analysis (TDA) and Machine Learning (ML) for predicting instabilities in fusion plasmas. At the center, a dynamic fusion plasma is depicted as a swirling, energetic mass. Around it, TDA features such as persistence diagrams, Betti number time series, and persistence landscapes are ethereal constructs, symbolically feeding into a complex neural network. The neural network represents the machine learning model, with luminous pathways indicating data flow. This visualization emphasizes the robustness and interpretability of TDA features, with neon elements highlighting the cutting-edge technological integration, set against a dark, futuristic background.

Synergies with Machine Learning and the Path Forward

The true power of TDA in fusion plasma analysis may be realized through its synergy with machine learning. While ML algorithms are adept at finding patterns in high-dimensional data, they often benefit from feature engineering that incorporates domain knowledge and produces more interpretable models. TDA can provide robust, noise-tolerant, and physically meaningful features for ML models. For instance, persistence diagrams, Betti numbers over time, or persistence landscapes can serve as compact, yet rich, descriptors of the plasma state, which can then be fed into supervised learning algorithms for instability prediction or unsupervised algorithms for regime identification. The recent success of ML in disruption prediction (Spangher et al., 2025) could be further amplified by incorporating topological features that capture the evolving geometry of magnetic field lines or plasma structures.

Despite its promise, several challenges must be addressed for TDA to become a standard tool in fusion research. The computational cost of TDA can be high for large, high-dimensional datasets from simulations or high-frequency diagnostics, necessitating the development of efficient algorithms and distributed computing approaches. Applying TDA to sparse and noisy experimental data also requires robust preprocessing and careful interpretation. Furthermore, establishing clear causal links between observed topological changes and specific physical mechanisms of instabilities will require close collaboration between TDA experts, plasma physicists, and computational scientists. Initiatives like DisruptionBench (Spangher et al., 2025) provide valuable platforms for testing and comparing new analysis methods, including TDA-enhanced ML.

The future of TDA in fusion research is bright. Potential applications include real-time monitoring of plasma topology for feedback control, the development of TDA-informed surrogate models for rapid prediction of plasma behavior, and the integration of topological insights into digital twins of fusion reactors. The ability to learn from complex data from current experiments like JET (Garcia et al., 2025) and apply these learnings to future devices is paramount. Ultimately, by providing a deeper understanding of the hidden structures and dynamics within turbulent plasmas, TDA can contribute significantly to the quest for stable, high-performance fusion energy (Katoch et al., 2025).

Conclusion

Topological Data Analysis offers a transformative approach to deciphering the complex, multi-scale dynamics of turbulent plasmas in fusion reactors. By moving beyond traditional statistical measures and characterizing the inherent "shape" and connectivity of plasma structures, TDA can reveal hidden patterns, identify precursors to deleterious instabilities like ELMs and disruptions, and provide novel features for advanced machine learning models. The ability to quantify evolving topological features, such as the birth and death of coherent structures or subtle changes in magnetic field topology, holds immense potential for improving our understanding of plasma confinement and for developing robust strategies for real-time monitoring and control.

While the application of TDA to fusion plasma is still in its nascent stages, the initial conceptual frameworks and an increasing body of related work in complex systems suggest a promising trajectory. Addressing computational challenges, validating TDA metrics against experimental data from diverse fusion devices, and fostering interdisciplinary collaboration will be key to unlocking its full potential. The overarching goal is to leverage the unique insights from TDA to enhance plasma confinement, ensure reactor stability, and accelerate the realization of fusion as a sustainable energy source for the future.
