Quantum Dot Nanosensors for Real-Time Monitoring of Volatile Organic Compound (VOC) Signatures as Pre-Symptomatic Stress Indicators in Agricultural Systems

Futuristic digital illustration showing a quantum nose system in agriculture with nanosensors on plants, VOC detection, and real-time data streaming to AI.
Figure 1: This 3D futuristic digital illustration showcases a Quantum Nose system in an agricultural setting, highlighting the integration of quantum dot and carbon dot nanosensors on plant leaves and in soil. The nanosensors detect trace volatile organic compound (VOC) signatures emitted by the plants, depicted as vibrant fluctuating lines. A smart greenhouse or field forms the backdrop, emphasizing the real-time application of this technology. Digital data streams are shown flowing from the nanosensors to an artificial intelligence system, which is represented with holographic neural network interfaces. The scene uses a dynamic neon color palette dominated by greens and blues, reinforcing the theme of cutting-edge technology harmoniously interacting with natural elements. This visualization emphasizes the potential of advanced nanosensor technology for enhanced agricultural monitoring and productivity.

Ensuring global food security in the face of climate change, emerging pathogens, and increasing population pressure demands a paradigm shift in agricultural management. Current crop monitoring practices are largely reactive, relying on the observation of visible symptoms such as discoloration, wilting, or lesions. By the time these signs are apparent, significant yield loss may be inevitable, and resource-intensive interventions are often required. A more sustainable and efficient approach lies in the pre-symptomatic detection of crop stress. Plants, when under duress from biotic or abiotic factors, emit a complex bouquet of volatile organic compounds (VOCs) that act as a chemical language, signaling their internal state long before visible damage occurs. This article proposes a speculative yet powerful synthesis of nanotechnology and artificial intelligence to decode this language in real-time. We envision a new generation of agricultural monitoring systems based on quantum dot (QD) and carbon dot (CD) nanosensors, capable of detecting subtle shifts in plant VOC signatures to provide an early warning system for farmers, enabling precision interventions that optimize resource use and maximize crop yields.

The central hypothesis is the development of a "Quantum Nose," a highly sensitive, multiplexed sensor array built from functionalized QDs and CDs. These nanosensors, with their superior photophysical properties, can detect trace concentrations of specific VOCs. When coupled with machine learning algorithms, this system could learn to recognize the unique, high-dimensional "stress signature" associated with different threats—such as drought, nutrient deficiency, or specific pathogen infections. By continuously "smelling" the air around the crops, this technology could move agriculture from a reactive to a predictive and preventative model, representing a crucial step towards building resilient and intelligent farming systems for the future.

The Chemical Language of Plant Stress: VOC Signatures

Plants are sophisticated chemists, constantly emitting a wide array of VOCs for communication and defense. The composition of this VOC profile is not static; it changes dramatically in response to environmental stressors. These changes constitute a specific "signature" that can, in principle, be used to diagnose the type and severity of the stress. As an example, the work by Gaikwad et al. (2025) highlights that in citrus plants, the presence of Huanglongbing (HLB) disease significantly alters the profile of secondary metabolites, including terpenes and volatile compounds, which could serve as diagnostic markers. Similarly, research by Zou et al. (2025) on Chimonanthus species shows a clear differentiation in terpenoid profiles between flowers and leaves, governed by the differential expression of terpene synthase (TPS) genes, illustrating the genetic basis for these chemical signatures.

The concept of using VOCs as stress indicators is broadly applicable across various stressors. Biotic attacks from herbivores or pathogens trigger the release of specific compounds to repel attackers or attract predators of the pest. For instance, the jasmonic acid and salicylic acid signaling pathways, which are central to plant defense, lead to the production of green leaf volatiles (GLVs) and specific terpenes. Abiotic stresses also elicit unique VOC responses. Drought stress can lead to the emission of isoprenoids that protect cellular membranes, while salinity stress can alter the emission of other volatile profiles. Oka et al. (2025) demonstrated that even a single VOC, safranal, can induce morphological changes in lettuce seedlings and alleviate salt stress by reducing oxidative damage, underscoring the potent biological activity of these compounds. The key challenge lies in capturing and interpreting this complex and often subtle chemical information in a noisy agricultural environment before the onset of visible symptoms.

Illustration depicting plant VOCs emission under stress. Shows chemical structures and dynamic shifts due to biotic and abiotic factors.
Figure 2: This scientific illustration presents the dynamic emission profiles of plant volatile organic compounds (VOCs) in response to environmental stressors. The left panel shows a plant under normal conditions with stable VOC emissions. The right panel juxtaposes the stressed state, highlighting increased and diverse emission profiles under biotic (pathogens) and abiotic (drought, salinity) stressors. Major VOCs, such as isoprene, terpenoids, and phenolics, are structurally represented. Stressors are symbolized by pathogen icons and drought/salinity markers, emphasizing their impact on VOC dynamics before visible symptoms arise.

Quantum Dots and Carbon Dots as Ultrasensitive VOC Detectors

Quantum dots (QDs) and their more sustainable counterparts, carbon dots (CDs), are ideal candidates for the transducer elements in a VOC monitoring system. These semiconductor nanocrystals exhibit size-tunable fluorescence with high quantum yields and remarkable photostability, making them highly sensitive optical reporters. The primary mechanism for VOC sensing is fluorescence quenching. When a target VOC molecule adsorbs onto the surface of a QD, it can interrupt the fluorescence process through mechanisms like Förster resonance energy transfer (FRET) or charge transfer, causing a measurable decrease in light emission. The high surface-area-to-volume ratio of these nanoparticles ensures that even trace amounts of an analyte can cause a detectable signal change.

The true power of QDs and CDs lies in their functionalizability. The surface of these dots can be engineered with specific organic ligands or polymers to create selective binding sites for different classes of VOCs. As reviewed by Nair et al. (2024), modifying nanoplatforms allows for the targeted optical chemosensing of various analytes, from metal ions to aromatic vapors. This opens the possibility of creating a multiplexed sensor array where each element is tuned to a different family of plant stress VOCs. While traditional QDs often contain heavy metals, the rise of carbon dots, which can be synthesized from sustainable sources like fungal biomass (Gómez-Pérez et al., 2025), offers a more biocompatible and environmentally friendly alternative for widespread deployment in agricultural settings. This aligns with the broader goals of green nanotechnology in creating sustainable agricultural solutions (Atanda et al., 2025).

Illustration showing molecular mechanism of VOC detection with functionalized quantum and carbon dots, depicting VOC molecule adsorption, fluorescence quenching, charge transfer, and FRET processes.
Figure 3: This illustration presents a detailed view of the molecular mechanism involved in detecting volatile organic compounds (VOCs) using functionalized quantum dots and carbon dots. VOC molecules are shown adsorbing onto the surface of these dots, triggering fluorescence quenching via charge transfer and FRET mechanisms. The image highlights selective binding ligands engineered to interact with specific VOC classes, demonstrating the selective nature of detection. This molecular-level depiction emphasizes the intricate interactions between quantum/carbon dots and VOC molecules, with visual cues indicating areas of fluorescence quenching and energy transfer pathways.

Synthesis: The "Quantum Nose" with an AI Brain

This article proposes the conceptual design of a "Quantum Nose" for precision agriculture—an integrated system combining a multiplexed QD/CD sensor array with an artificial intelligence (AI) backend. The physical sensor would consist of a micro-array chip where distinct spots are functionalized with different types of QDs and CDs, each tailored to be sensitive to key plant VOCs like isoprenoids, monoterpenes, benzenoids, and GLVs. When deployed in a field or greenhouse, this chip would be continuously exposed to the ambient air, and the fluorescence of each spot would be monitored in real-time.

The raw output of this array would be a high-dimensional time-series dataset—a complex "smell-scape" far too intricate for simple threshold-based alarms. Herein lies the critical role of AI. Inspired by the application of machine learning in other complex sensor systems (Kim et al., 2025; Hu et al., 2025), a deep learning model, such as a recurrent neural network (RNN) or a convolutional neural network (CNN), would be trained on this data. The model would learn to recognize the subtle, spatiotemporal patterns in the VOC data that constitute a "stress signature." By training the model on plants subjected to a variety of known stressors (e.g., specific fungal pathogens, controlled drought, nitrogen limitation), the AI could learn to not only detect the presence of stress pre-symptomatically but also to classify its specific type. This moves beyond simple detection to active diagnosis. For instance, the model could learn that a slow rise in compound A combined with a sharp spike in compound B indicates the early stages of powdery mildew, while a gradual increase in compound C alone signifies impending drought stress.

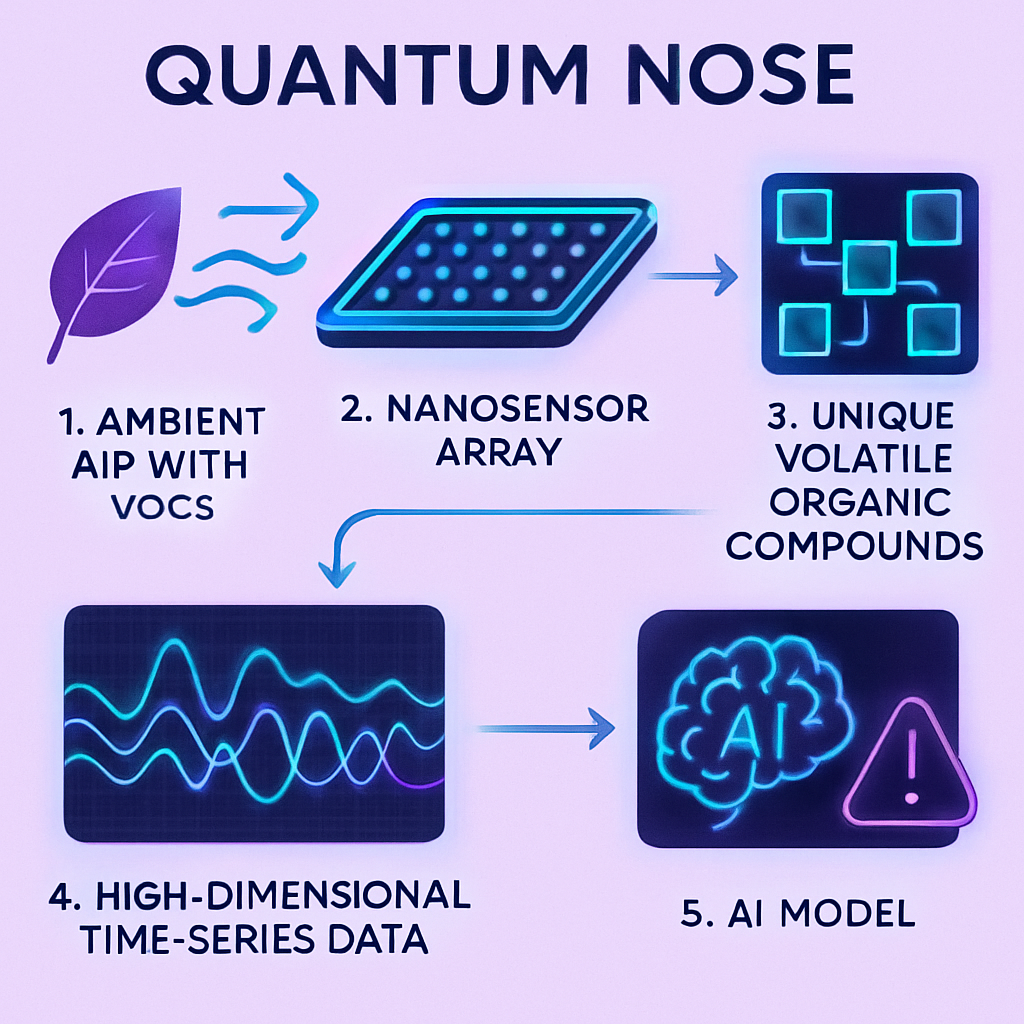

Futuristic schematic of Quantum Nose system, showing air with VOCs passing over nanosensor array, generating data streamed to AI for stress classification.
Figure 4: This futuristic schematic visualizes the Quantum Nose system. It details the process where ambient air containing volatile organic compounds (VOCs) moves over a nanosensor array. Each pixel of the array detects specific VOCs, producing high-dimensional time-series data. This data is streamed into an AI model, capable of classifying plant stresses before symptoms appear, ultimately leading to the issuance of targeted management alerts. The schematic uses a light background with neon tones to emphasize the advanced technological aspect of the system.

Future Applications and Implications for Precision Agriculture

The successful implementation of a Quantum Nose system would revolutionize agriculture. Farmers could receive alerts on their mobile devices indicating not just that a crop is stressed, but why it is stressed and where the stress is originating, days or even weeks before it becomes visible. This would enable unprecedented precision in farm management. Instead of broad, prophylactic spraying of fungicides, a farmer could apply a targeted micro-dose directly to the affected plants. Instead of irrigating an entire field, water could be delivered with pinpoint accuracy to the sections showing the earliest signs of drought stress. This would drastically reduce the use of water, fertilizer, and pesticides, leading to significant cost savings and a dramatic reduction in the environmental footprint of agriculture.

Looking further, this technology could be integrated into autonomous systems. Drone-mounted Quantum Noses could sweep over vast fields, creating detailed spatial maps of crop health with pre-symptomatic resolution. This data could feed into a closed-loop system where the same drones are then tasked with delivering the precise intervention needed at the exact location. On a larger scale, the aggregated data from thousands of farms could provide an invaluable resource for regional and global crop forecasting, pest and disease outbreak modeling, and developing more resilient agricultural policies. The development of such non-destructive, real-time optical nanosensors represents a critical convergence of materials science, biotechnology, and AI, offering a powerful toolkit for addressing the pressing challenges of modern food production.

Conclusion

The ability of plants to signal distress through volatile organic compounds presents a largely untapped resource for advanced agricultural monitoring. This article has proposed a novel, integrated system—a "Quantum Nose"—that combines the exquisite sensitivity of quantum dot and carbon dot nanosensors with the pattern-recognition power of artificial intelligence. This synthesis aims to move crop management from a reactive to a predictive framework by decoding the pre-symptomatic chemical language of plant stress. By detecting and classifying the unique VOC signatures associated with threats like disease, pests, and drought, this technology could enable targeted, resource-efficient interventions at the earliest possible stage.

While significant challenges remain in sensor stability, manufacturing scale-up, and model training for diverse real-world conditions, the potential benefits are immense. The development of such systems could fundamentally alter how we manage our agricultural landscapes, paving the way for a more sustainable, productive, and food-secure future.

References

  • Atanda, S. A., Shaibu, R. O., & Agunbiade, F. O. (2025). Nanoparticles in agriculture: balancing food security and environmental sustainability. Discover Agriculture. https://doi.org/10.1007/s44279-025-00159-x
  • Fan, Z., Zhao, T., Gu, Z., Gao, H., Zhou, X., Yu, H., Xing, D., Wang, H., & Li, C. (2025). Differences in human skin volatiles between populations with high and low attraction to mosquitoes. Parasites & Vectors. https://doi.org/10.1186/s13071-025-06738-7
  • Gaikwad, P. N., Sidhu, G. S., Brar, N. S., Singh, J., Tokala, V. Y., Sharma, A., & Manchanda, P. (2025). Roles of metabolites in fruit maturation, HLB-defense regulation and crosstalk between phytohormone signalling pathways in citrus. Plant Growth Regulation. https://doi.org/10.1007/s10725-025-01308-4
  • Gómez-Pérez, L. S., Aranda-Barradas, M. E., Mayén-Bautista, A. S., Torres-Huerta, A. L., & Antonio-Pérez, A. (2025). Insights into carbon dots synthesized from fungal sources. Biotechnology for Sustainable Materials. https://doi.org/10.1186/s44316-025-00033-2
  • Hu, H., Yuan, H., Sun, S., Feng, J., Shi, N., Wang, Z., Liang, Y., Ying, Y., & Wang, Y. (2025). Machine learning-powered activatable NIR-II fluorescent nanosensor for in vivo monitoring of plant stress responses. Nature Communications. https://doi.org/10.1038/s41467-025-60182-w
  • Kim, K., Chun, D., & Yang, W. (2025). IoT-based filter management system using reinforced ANFIS for VOCs reduction in urban industrial facilities. Scientific Reports. https://doi.org/10.1038/s41598-025-02435-8
  • Nair, R. R., Hyun, J. H., Kim, J., Jung, K. O., & Kim, D. (2024). Recent progress in the development of cellulose-derived organic-nanopolymer and coordination network platforms for application as optical chemosensors. Advanced Composites and Hybrid Materials. https://doi.org/10.1007/s42114-024-01078-z
  • Oka, T., Fujimaru, Y., Minami, T., Yamaguchi, T., Matsumoto, H., & Sunohara, Y. (2025). Characterization of safranal-induced morphological changes and salt stress alleviation in lettuce seedlings. Plant Growth Regulation. https://doi.org/10.1007/s10725-025-01291-w
  • Perilli, D., Freddi, S., Zanotti, M., Drera, G., Casotto, A., Pagliara, S., Schio, L., Sangaletti, L., & Valentin, C. (2024). Design of highly responsive chemiresistor-based sensors by interfacing NiPc with graphene. Communications Materials. https://doi.org/10.1038/s43246-024-00693-z
  • Shi, L., Song, J., Wang, Y., Fu, H., Patrick-Iwuanyanwu, K., Zhang, L., Lawrie, C. H., & Zhang, J. (2025). Applications of Carbon-Based Multivariable Chemical Sensors for Analyte Recognition. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01741-0
  • Woollam, M., Angarita-Rivera, P., Thakur, S., Daneshkhah, A., Siegel, A. P., Hardin, D. S., & Agarwal, M. (2025). Steps toward clinical validation of exhaled volatile organic compound biomarkers for hypoglycemia in persons with type 1 diabetes. Scientific Reports. https://doi.org/10.1038/s41598-025-00284-z
  • Zou, W., Liu, C., Wang, H., Shen, R.-Y., Ji, M.-C., Gu, C.-H., & Yang, L.-Y. (2025). TPS genes expression pattern and terpenoids content in the leaves and flowers of Chimonanthus praecox and C. salicifolius. Scientific Reports. https://doi.org/10.1038/s41598-025-04806-7
