Metamaterial-Enhanced Radiative Cooling for Passive Thermal Management of High-Density Data Centers in Arid Climates

3D render of a data center with metamaterial skin in a desert, emitting infrared radiation and reflecting sunlight.
Figure 1: This futuristic 3D render depicts a high-density data center situated in an arid desert landscape, utilizing a dynamic metamaterial building skin for passive radiative cooling. The building is shown emitting heat as infrared waves towards the sky, effectively demonstrating the process of radiative heat transfer. Sunlight reflection is depicted through beams bouncing off the building, highlighting the metamaterial's ability to reduce heat absorption. With a sleek design integrated into the harsh desert environment, this visual encapsulates the innovative use of smart cooling technology to maintain efficiency in extreme weather conditions, showcasing environmental adaptation and energy efficiency.

The exponential growth of data processing and storage has led to the proliferation of high-density data centers, which are among the most energy-intensive commercial buildings. A significant portion of this energy, often exceeding 40%, is consumed by cooling systems required to dissipate the immense waste heat generated by servers. This challenge is acutely amplified in arid climates, which are often favored for their low humidity and abundant solar energy potential, yet suffer from high ambient temperatures and severe water scarcity. Traditional cooling methods, such as vapor compression refrigeration and evaporative cooling, are either highly energy-inefficient or consume vast quantities of water, rendering them unsustainable in these environments.

This article proposes a novel, integrative solution that leverages advances in materials science to create a fully passive thermal management system: metamaterial-enhanced radiative cooling. We move beyond existing static radiative cooling materials to propose a dynamic, environmentally-adaptive system. We hypothesize that by designing metamaterials with thermally-responsive, tunable emissivity and integrating them with robust, self-cleaning surfaces, it is possible to create an intelligent building skin for data centers. This skin would maximize passive cooling during hot days, prevent undesirable heat loss during cold desert nights, and maintain high performance despite environmental challenges like dust accumulation, thereby offering a transformative approach to sustainable data center operation in the world's most demanding climates.

The Limits of Static Cooling and the Promise of Metamaterials

Passive daytime radiative cooling (PDRC) is a technology that exploits the universe as a cold sink. Materials designed for PDRC exhibit high solar reflectance to minimize heat gain and high thermal emittance within the 8-13 μm atmospheric transparency window to radiate heat efficiently to the cold of deep space, achieving sub-ambient temperatures even under direct sunlight. Recent review articles, such as that by Xie et al. (2025), have comprehensively documented the rapid progress in spectrally selective materials, which form the foundation of PDRC. These are typically nanophotonic structures or polymer composites engineered to have the desired optical properties.

However, a critical limitation of most current PDRC systems is that their properties are static. While highly effective for cooling, this 'always-on' state can be detrimental in arid climates characterized by large diurnal temperature swings. During cold desert nights or in the winter season, a highly emissive surface will continue to radiate heat, potentially overcooling the data center. This would necessitate activating energy-intensive heating systems to maintain the optimal operating temperature for the electronic equipment, negating some or all of the passive cooling savings. The challenge, therefore, is not merely to cool, but to regulate temperature intelligently and passively.

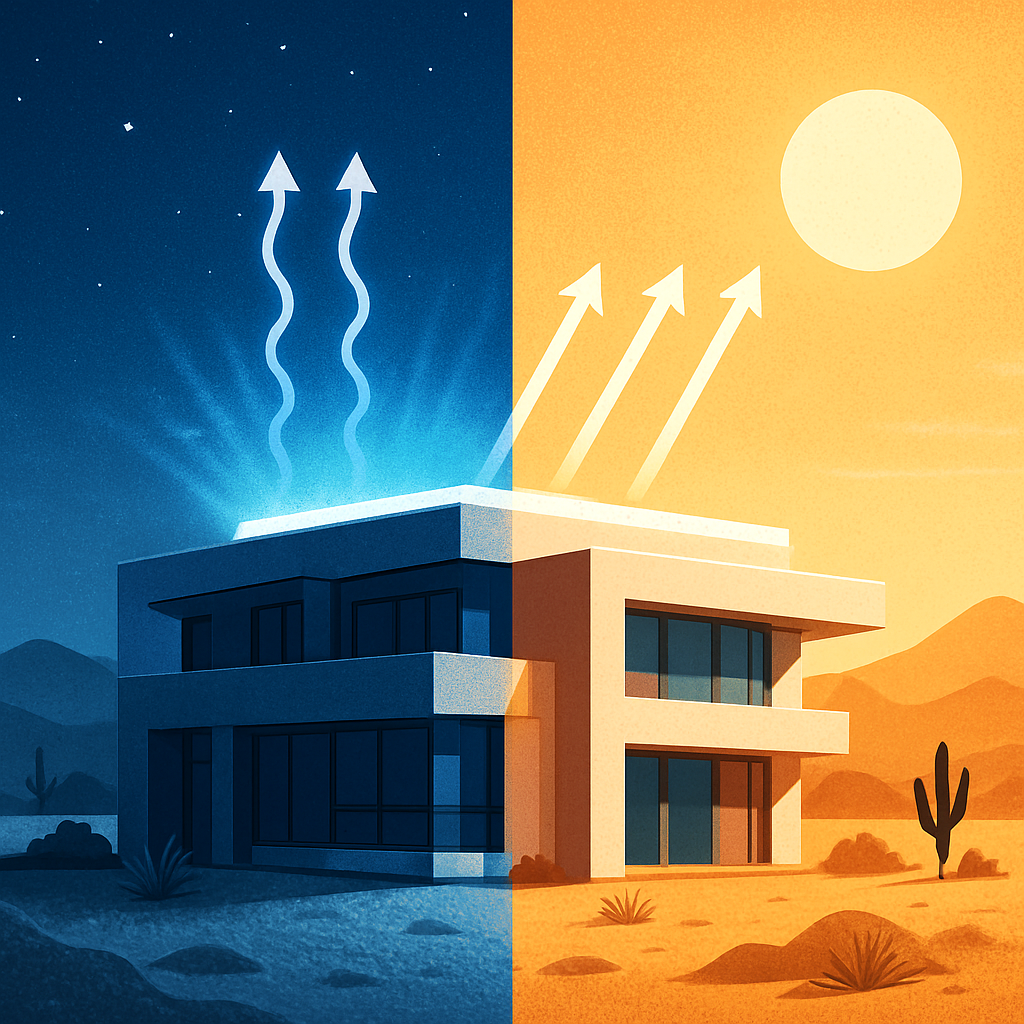

Building with passive daytime radiative cooling surface showing night-time excessive cooling with glowing surface and daytime sunlight reflection.
Figure 2: This conceptual illustration depicts the limitations of static passive daytime radiative cooling (PDRC) materials in arid climates. The building shown has a static PDRC surface that during the nighttime excessively cools, as seen by the glowing surface indicating heat emission into the cold night sky. In contrast, during the daytime, the surface reflects sunlight to cool the building efficiently. The image is split to visually contrast the cooling phases with the left side showing the cold night environment using cool blues and frost textures, while the right side symbolizes the warm day with bright yellow and orange hues under a desert sun. This visual emphasizes the challenge of managing large diurnal temperature swings in arid regions, highlighting the necessity for adaptive control mechanisms in PDRC systems to prevent overcooling and ensure thermal comfort.

An Adaptive Solution: Dynamically Tunable Radiative Metamaterials

The core of our proposed solution lies in creating a metamaterial surface with adaptive thermal properties. This can be achieved by incorporating phase-change materials, most notably Vanadium Dioxide (VO2), into the metamaterial's structure. VO2 undergoes a thermally-driven insulator-to-metal phase transition at a near-room temperature (~68°C), which can be tuned through doping. This transition dramatically alters its optical properties, particularly in the infrared spectrum. Below the transition temperature, VO2 is an IR-transparent insulator; above it, it becomes an IR-reflective metal.

This principle has been explored for "smart" thermal management, as demonstrated by Zhou et al. (2025) in their work on self-adaptive dual-modal coatings. We propose to harness this phenomenon specifically for data center regulation. The metamaterial would be designed to have high thermal emittance in its 'hot' state (when ambient/surface temperatures are high). When temperatures drop below a set threshold (e.g., 20°C) during the night, the VO2 in the metamaterial would transition to its insulator state, significantly reducing the surface's thermal emissivity. This passive switching mechanism, also supported by fundamental research from Kazenwadel et al. (2025) on switchable VO2 structures, would effectively 'trap' the building's heat, preventing overcooling. This creates an autonomous system that cools aggressively when needed and conserves heat when cooling is detrimental, all without external energy input or control systems.

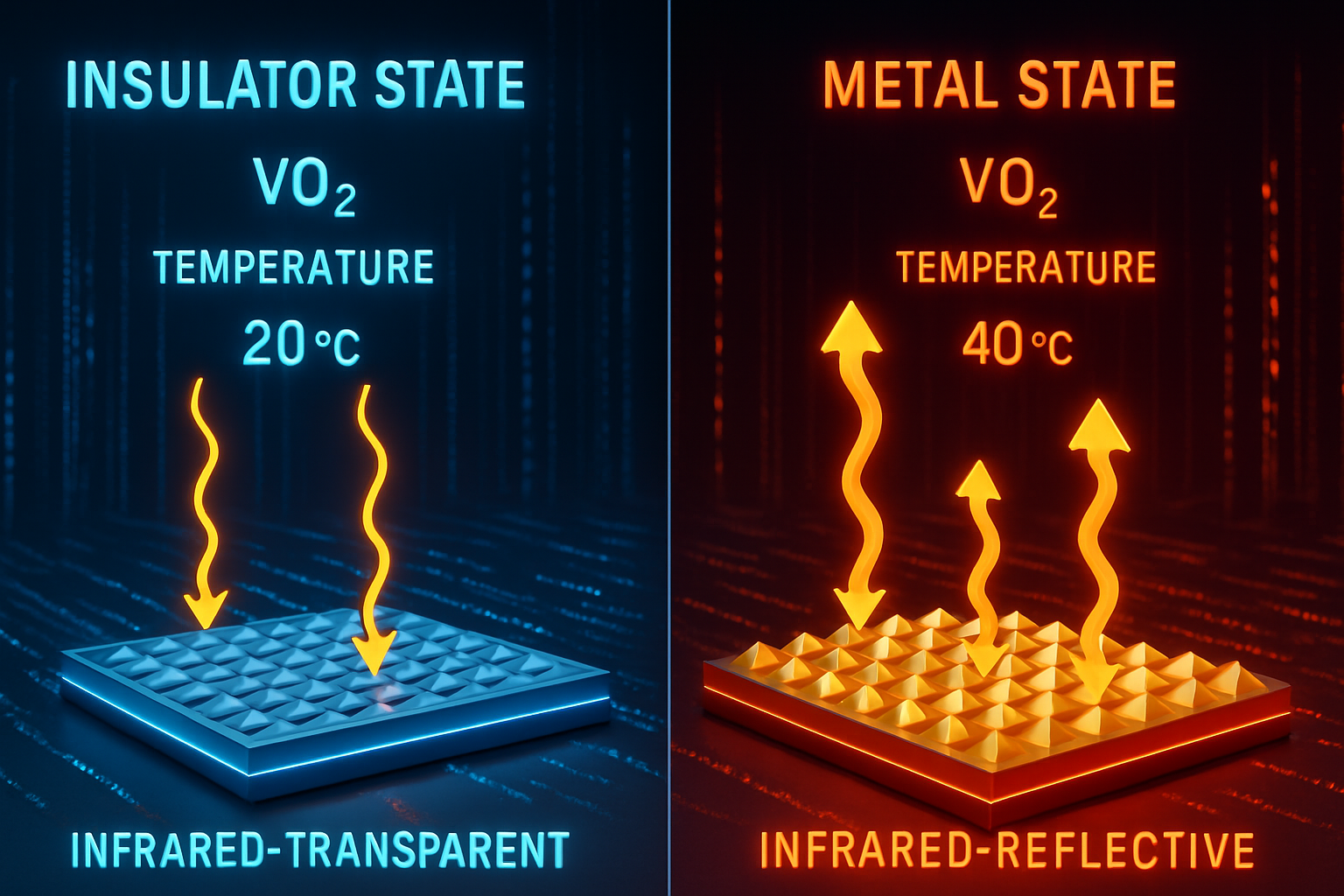

Illustration showing phase transition in vanadium dioxide metamaterial from infrared-transparent to infrared-reflective states, applied in data center cooling.
Figure 3: This advanced 3D scientific illustration depicts the phase transition mechanism of dynamically tunable radiative metamaterials using vanadium dioxide (VO2). The split-frame design showcases the metamaterial's transformation from an infrared-transparent insulator to an infrared-reflective metal, illustrating the change in emissivity responding to temperature variations. Highlighted are its applications in intelligent data center cooling, where managing thermal emissions is crucial. Digital streams and temperature gradients in the image emphasize the high-tech, futuristic design and functionality of VO2 in thermal management systems.

Overcoming Environmental Barriers: Durability and Self-Cleaning

A theoretical design is insufficient without considering real-world operational challenges. In arid climates, the deposition of dust, sand, and other aerosols on the radiative surface is a primary cause of performance degradation. These particles can absorb solar radiation and reduce thermal emittance, quickly compromising the cooling effect. Therefore, a successful system must be resilient to these environmental factors.

Here, we propose to draw inspiration from parallel research in robust optical systems. For instance, Yang et al. (2025) developed mechanically robust and self-cleanable encapsulated metalenses using specialized coatings that protect the delicate nanostructures from physical damage and contamination. We envision a similar multi-layer approach for the data center skin. The tunable VO2-metamaterial core would be protected by a highly durable and transparent top layer. This encapsulation would be engineered to be hydrophobic and anti-static, minimizing the adhesion of dust particles and facilitating self-cleaning through wind action. This focus on long-term durability and performance stability in a harsh environment is a critical and novel component of this synthesized approach, bridging the gap between laboratory-demonstrated materials and practical, large-scale infrastructure.

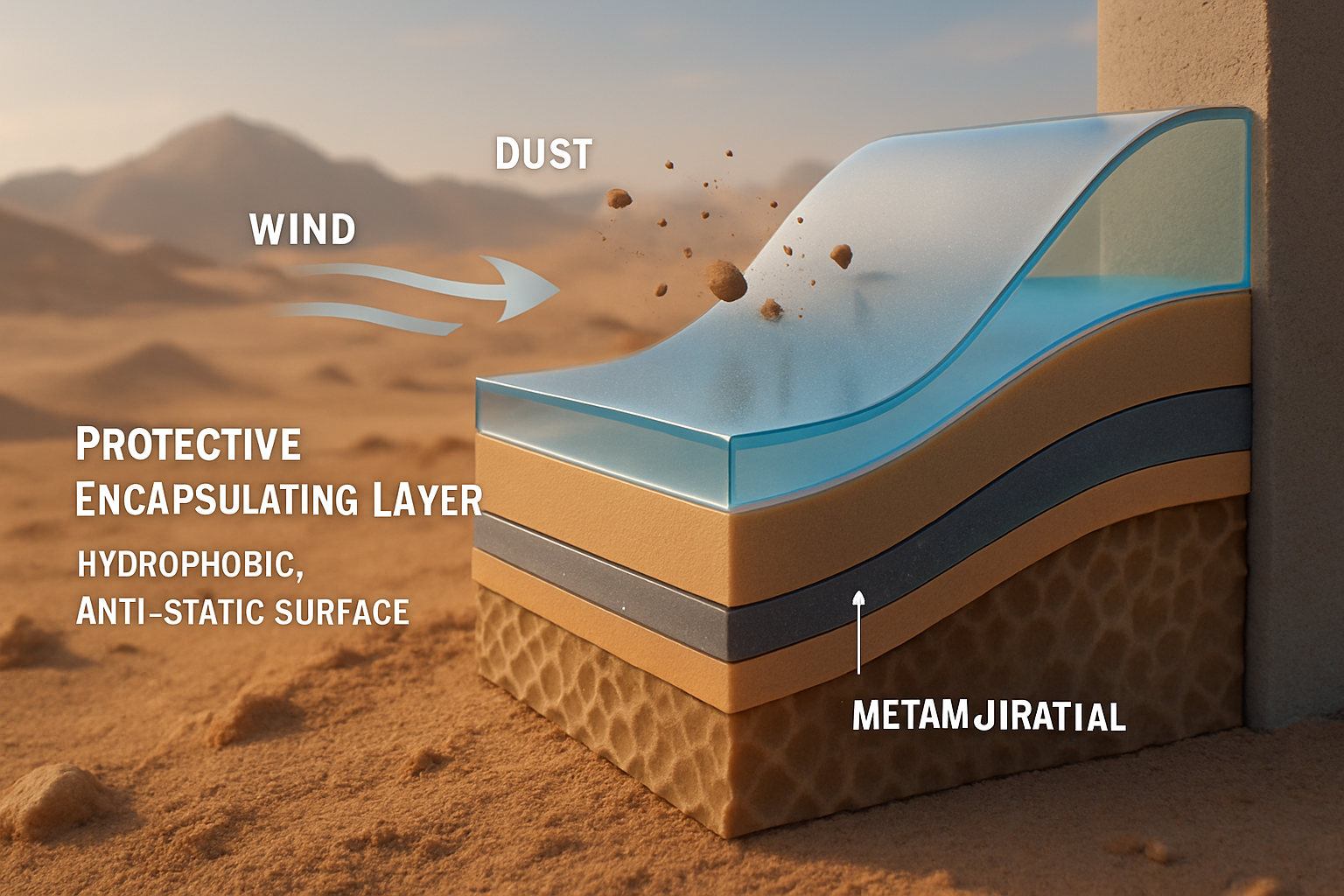

Illustration of advanced building skin with multi-layered metamaterial showing durability and self-cleaning in a desert setting.
Figure 4: This image showcases the advanced building skin designed for environmental durability and self-cleaning capabilities. The cross-section of the metamaterial illustrates multiple layers that include a protective encapsulating layer with hydrophobic and anti-static properties. Wind effects are depicted as removing dust particles from the surface, highlighting the self-cleaning feature essential for maintaining efficiency in arid and dusty climates. The desert setting reinforces the material's ability to function effectively in challenging environmental conditions, ensuring that the building remains cool and clean.

Conclusion

The convergence of metamaterial design, phase-change physics, and robust coating technology presents a transformative pathway for the thermal management of high-density data centers. The proposed system—a dynamic, self-regulating, and self-cleaning building skin—offers a solution tailored to the unique challenges of arid climates. It promises not only to drastically reduce the enormous energy and water footprint associated with data center cooling but also to enhance operational resilience. While achieving large-scale, cost-effective manufacturing of such complex, multi-functional materials remains a significant engineering challenge, the foundational science is established. The conceptual framework laid out here, which integrates spectral selectivity with dynamic emissivity and environmental robustness, defines a new, ambitious frontier. It reframes the data center not as a brute-force-cooled box, but as a structure intelligently and passively integrated with its climate, marking a pivotal step towards a truly sustainable digital infrastructure.
