Chiral Phononic Crystals: Engineering Directional Thermal Transport in Asymmetric Nanostructures for Waste Heat Upcycling

3D render of nanoscale chiral phononic crystals showcasing structural chirality and directional thermal transport with arrows. — **Figure 1:** This 3D scientific rendering illustrates nanoscale chiral phononic crystals, featuring periodic three-dimensional structures with a distinct lack of inversion symmetry. The chiral design is emphasized, showcasing how structural asymmetry leads to the creation of forbidden bandgaps for phonons. Brightly colored arrows indicate the preferential direction of heat flow, effectively demonstrating the phenomenon of directional thermal transport caused by these chiral structures. The image captures the essence of how such crystals manipulate phonons to achieve directional thermal properties, set against a dark background to enhance visual contrast.

The persistent challenge of managing and repurposing waste heat, a ubiquitous byproduct of industrial processes and energy consumption, necessitates innovative thermal transport control strategies. Phononic crystals (PnCs), engineered materials with periodic modulations of their acoustic properties, offer a promising avenue for manipulating phonon propagation and thus heat flow. Conventional PnCs achieve thermal control primarily through bandgap engineering and scattering. However, the introduction of chirality—structural handedness—into PnC design, creating asymmetric nanostructures, opens new frontiers for realizing non-reciprocal thermal transport.

This article explores the burgeoning field of chiral PnCs, focusing on their potential to engineer highly directional thermal transport, akin to thermal diodes. We will delve into how these asymmetric nanostructures can break thermal flux symmetry, leading to significant thermal rectification, and discuss the speculative yet compelling applications in waste heat upcycling and advanced thermal management, paving the way for more efficient energy utilization.

The Convergence of Chirality, Asymmetry, and Phonon Control

Phononic crystals control heat by creating forbidden frequency ranges (bandgaps) for phonons or by selectively scattering them based on wavelength and geometry. Chirality, a fundamental property of objects not superimposable on their mirror image, introduces an inherent structural asymmetry. When implemented in PnCs at the nanoscale, this asymmetry profoundly influences phonon dispersion and interaction. The breaking of spatial inversion symmetry is a critical prerequisite for observing non-reciprocal phenomena, including directional transport. Recent theoretical and experimental explorations into Weyl phonons (Zhang et al., 2025) and chiral collective vibrations in moiré superlattices (Li et al., 2025) underscore the emerging understanding of how chirality and associated angular momentum can dictate phonon behavior.

In chiral PnCs, the handedness of the structure can interact with phonon modes in a wavevector-dependent manner, leading to asymmetric transmission probabilities. This is distinct from non-chiral asymmetric structures, as the chirality can impose additional selection rules or preferential pathways for phonon propagation depending on their intrinsic (though less understood for thermal phonons) or extrinsic "handedness" dictated by their interaction with the chiral lattice.

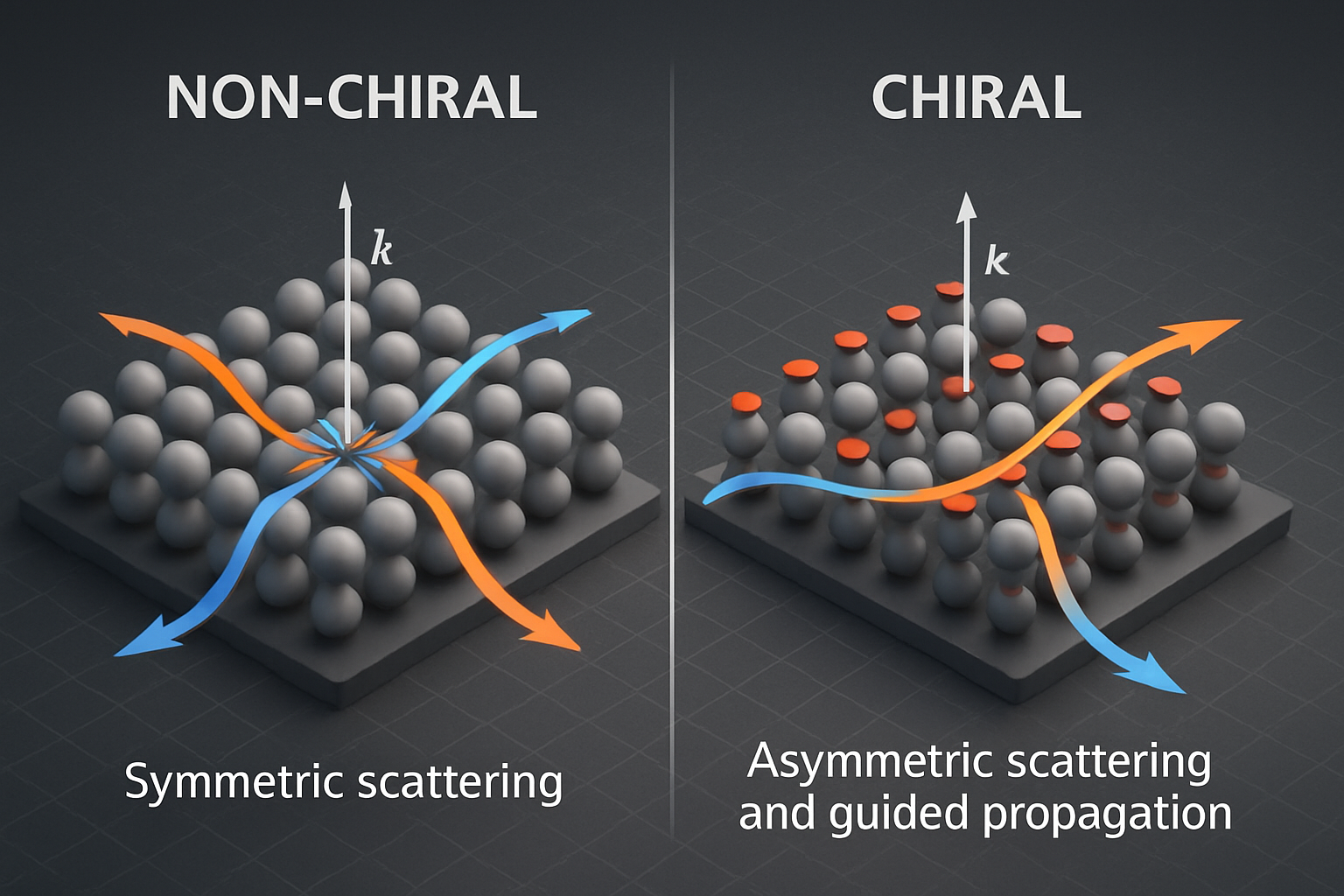

3D render showing comparison between chiral and non-chiral phononic arrays demonstrating phonon wave interactions. — **Figure 2:** This 3D scientific render showcases two phononic arrays: one chiral and the other non-chiral. The left panel illustrates a non-chiral phononic array where phonon waves exhibit symmetric propagation and scattering, highlighted by uniform wave directions. In contrast, the right panel depicts a chiral array where phonons are asymmetrically scattered and guided through the lattice, demonstrating non-reciprocal heat flow. Arrows indicate wavevector directions, emphasizing differences in transmission based on the structural handedness of the arrays. This visualization effectively communicates the complex interplay between lattice structure and phonon dynamics in phononic crystals.

Engineering Directional Thermal Transport: Towards Phononic Thermal Diodes

The concept of a thermal diode, a device allowing heat to flow preferentially in one direction while impeding it in the opposite, is central to efficient thermal management. Asymmetric nanostructures are key to realizing such thermal rectification. Chiral PnCs, by their very nature, provide this asymmetry. The engineered chirality can lead to a scenario where phonons incident from one direction experience different scattering cross-sections or mode conversion efficiencies compared to phonons incident from the opposite direction. For instance, a helical or spiral arrangement of scattering elements within the PnC could effectively guide or scatter phonons based on their propagation direction and possibly their polarization or mode type.

Theoretical studies (building on general PnC insights like those from Bun et al., 2024, who optimized PnC parameters for reduced thermal conductivity) suggest that optimized chiral geometries could achieve significant thermal rectification ratios. The work by Huang et al. (2024) on a graphite thermal Tesla valve in a different system (phonon hydrodynamics) conceptually supports the idea that engineered asymmetry leads to directional flow. In chiral PnCs, this is achieved by tailoring the phononic band structure and density of states to be asymmetric with respect to the direction of phonon wavevectors. One speculative hypothesis is that chiral PnCs might exhibit rectification that is not only directional but also dependent on the "chirality" of phonon modes themselves, if such a property can be meaningfully defined and excited in thermal phonon populations.

Nanostructure Design, Materialization, and Fabrication Challenges

Designing effective chiral PnCs for thermal applications requires sophisticated computational modeling to predict phonon band structures and transmission spectra in these complex geometries. Materials selection is also critical; silicon, with its well-understood phononic properties and mature fabrication technologies (Bun et al., 2024), is a candidate, but exploring novel materials, including 2D materials like those in moiré systems (Li et al., 2025) or even hybrid organic-inorganic structures, could offer tailored acoustic impedance contrasts and new chiral functionalities.

A significant hurdle lies in the fabrication of these intricate, often three-dimensional, chiral nanostructures with high precision and scalability. Techniques borrowed from photonic crystal fabrication, such as multi-layer lithography, direct laser writing, or self-assembly of chiral building blocks, are being explored (similar to challenges in 3D photonic HOTIs by Wang et al., 2025). Precise control over nanoscale features, aspect ratios, and material interfaces is paramount to achieving the theoretically predicted phononic properties and thermal rectification performance. Furthermore, characterization of directional thermal transport at the nanoscale presents its own set of experimental challenges, requiring advanced thermal microscopy techniques.

3D render of nanofabrication techniques creating chiral phononic nanostructures with intricate three-dimensional chiral lattices. — **Figure 3:** This 3D rendering depicts the complex process of fabricating chiral phononic nanostructures using advanced nanofabrication techniques such as direct laser writing and multi-layer lithography. The image highlights the creation of intricate three-dimensional chiral lattices with detailed cross-sections that emphasize nanoscale precision and material contrasts. Key fabrication parameters and architectural features are annotated to show the precise layering and construction of the chiral structures, which are illuminated with neon tones to emphasize their nanoscale complexity against a dark background.

Waste Heat Upcycling and Novel Thermal Management Applications

The ability to direct waste heat efficiently using chiral PnCs could revolutionize waste heat upcycling. Imagine a thermal diode that passively channels low-grade waste heat from a source (e.g., an electronic chip, an industrial exhaust) towards a thermoelectric generator or a thermal energy storage system, while preventing backflow and parasitic losses. This one-way street for heat could significantly enhance the efficiency of energy recovery systems. Beyond macroscopic heat harvesting, chiral PnCs could enable sophisticated thermal management in miniaturized devices, protecting sensitive components from localized hotspots by unidirectionally evacuating heat.

Speculatively, the unique properties of chiral PnCs might pave the way for "thermal circuits" where heat flow is routed and controlled with a new degree of freedom. If certain phonon modes exhibit chiral characteristics, one could envision devices that sort or filter phonons based on their "handedness," akin to how chiral optical metamaterials interact with polarized light. This could lead to phonon-based logic or information processing concepts where information is encoded in thermal packets and their directional flow. The observation of symmetry-forbidden rectification in Weyl metals due to dynamical symmetry breaking (Salawu et al., 2025) provides an analogy: chiral PnCs could offer a platform for "phonon current" rectification governed by intrinsic structural chirality, potentially unlocking new paradigms in heat flow control. Moreover, the interplay of strong thermal flux with the nonlinear response of chiral structures (inspired by Bustamante Lopez et al., 2025, in multiferroics) might lead to switchable thermal pathways or active thermal diodes.

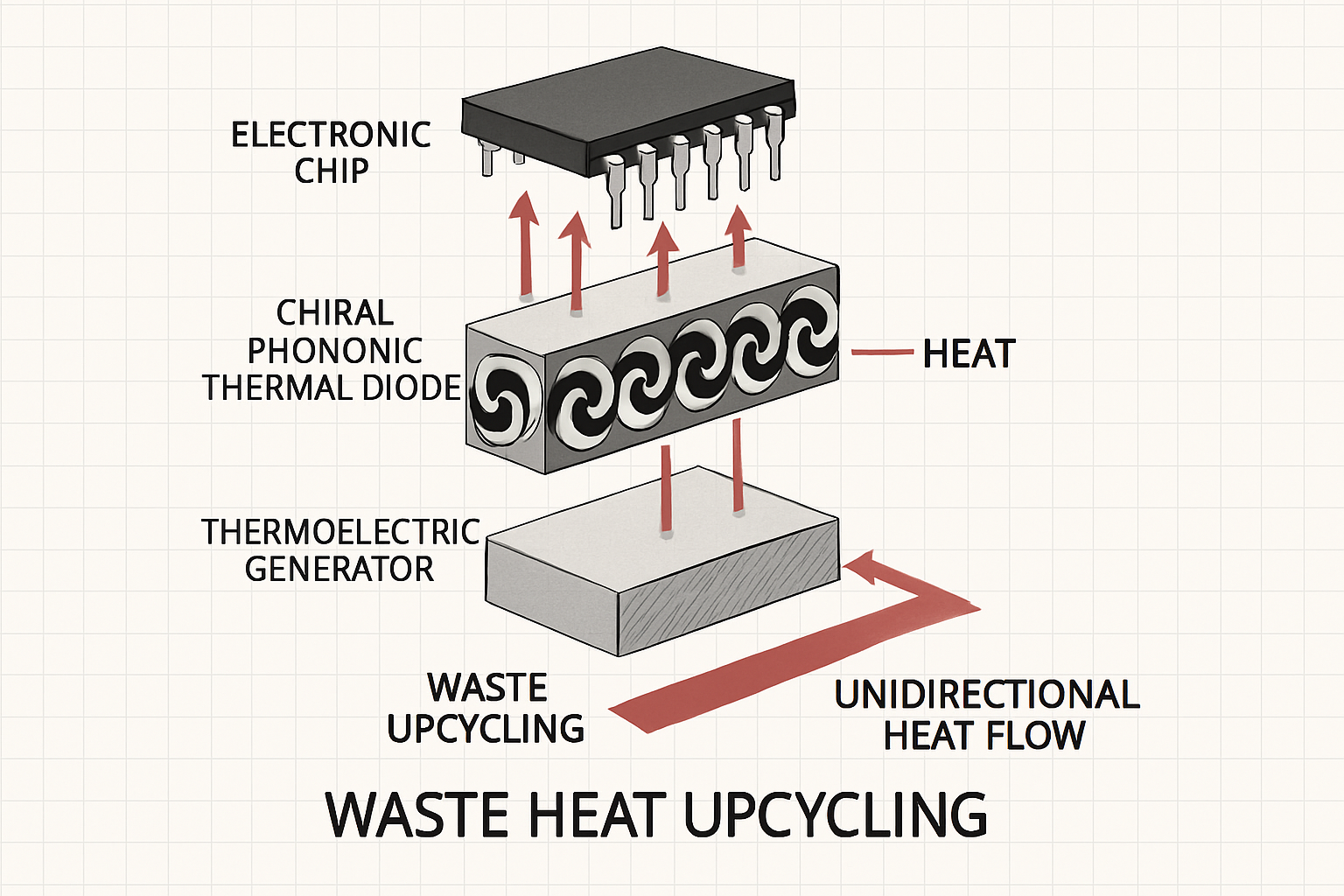

Conceptual illustration of a chiral phononic crystal system for diverting waste heat from an electronic chip to a thermoelectric generator. — **Figure 4:** This illustration depicts the conceptual application of chiral phononic crystals in waste heat upcycling. The image highlights an electronic chip linked to a chiral phononic thermal diode, which is further connected to a thermoelectric generator. Arrows indicate the unidirectional heat flow facilitated by the diode, demonstrating the principle of thermal rectification and efficient heat transfer towards the generator, while preventing heat backflow. Labeled components including the electronic chip, thermal diode, and generator are set against a clean vector grid background, with a cutaway side-view to emphasize the heat path and operational dynamics.

Conclusion

Chiral phononic crystals represent a paradigm shift in designing materials for thermal management, moving beyond simple insulation or conduction to active, directional control of heat flow. By intrinsically breaking spatial inversion symmetry, these asymmetric nanostructures hold the potential to realize highly efficient thermal diodes, crucial for mitigating energy waste and advancing thermal technologies. Key hypotheses, such as chirality-dependent phonon scattering leading to significant rectification and the potential for topological protection of unidirectional heat flow in specifically designed chiral lattices, are driving current research.

However, the field is nascent. Open problems include the definitive experimental demonstration of high-ratio thermal rectification directly attributable to phonon-chirality interactions at the nanoscale, the development of scalable and precise fabrication techniques for 3D chiral PnCs, and the integration of these structures into practical devices for waste heat upcycling. Future research should focus on deeper theoretical understanding of phonon interactions in chiral media, exploring novel material platforms, and developing advanced athermal characterization techniques. The prospect of engineering thermal landscapes with unprecedented directional control makes chiral PnCs a compelling frontier in materials science and thermal engineering, promising a future where waste heat is not merely dissipated, but intelligently harvested and repurposed.

References

Bun, K., Pathak, S., & Wang, X. (2024). Widening the frequency bandgap and reducing thermal conductivity in phononic crystals by tuning structural parameters using a novel computational simulation method. Journal of Thermal Analysis and Calorimetry. https://doi.org/10.1007/s10973-024-13591-w
Bustamante Lopez, D. A., Juraschek, D. M., Fechner, M., Xu, X., Cheong, S.-W., & Hu, W. (2025). Ultrafast simultaneous manipulation of multiple ferroic orders through nonlinear phonon excitation. npj Quantum Materials. http://dx.doi.org/10.1038/s41535-025-00738-7
Huang, X., Anufriev, R., Jalabert, L., Watanabe, K., Taniguchi, T., Guo, Y., Ni, Y., Volz, S., & Nomura, M. (2024). A graphite thermal Tesla valve driven by hydrodynamic phonon transport. Nature. https://doi.org/10.1038/s41586-024-08052-1
Li, L., Chen, J., Hu, L., Qiu, Z., Zou, Z., Liu, R., Zheng, L., Cong, C. (2025). Moiré collective vibrations in atomically thin van der Waals superlattices. Nature Communications. http://dx.doi.org/10.1038/s41467-025-59325-w
Salawu, Y. A., Choun, Y., Yoo, S.-J., Sasaki, M., Kim, K.-S., & Kim, H.-J. (2025). Observation of symmetry-forbidden rectification in an inversion-symmetric Weyl metal. Nature Communications. http://dx.doi.org/10.1038/s41467-025-59394-x
Wang, Z., Meng, Y., Yan, B., Zhao, D., Yang, L., Chen, J., Cheng, M., Xiao, T., Shum, P. P., Liu, G.-G., Yang, Y., Chen, H., Xi, X., Zhu, Z.-X., Xie, B., & Gao, Z. (2025). Realization of a three-dimensional photonic higher-order topological insulator. Nature Communications. http://dx.doi.org/10.1038/s41467-025-58051-7
Zhang, T., Murakami, S., & Miao, H. (2025). Weyl phonons: the connection of topology and chirality. Nature Communications. http://dx.doi.org/10.1038/s41467-025-58913-0
